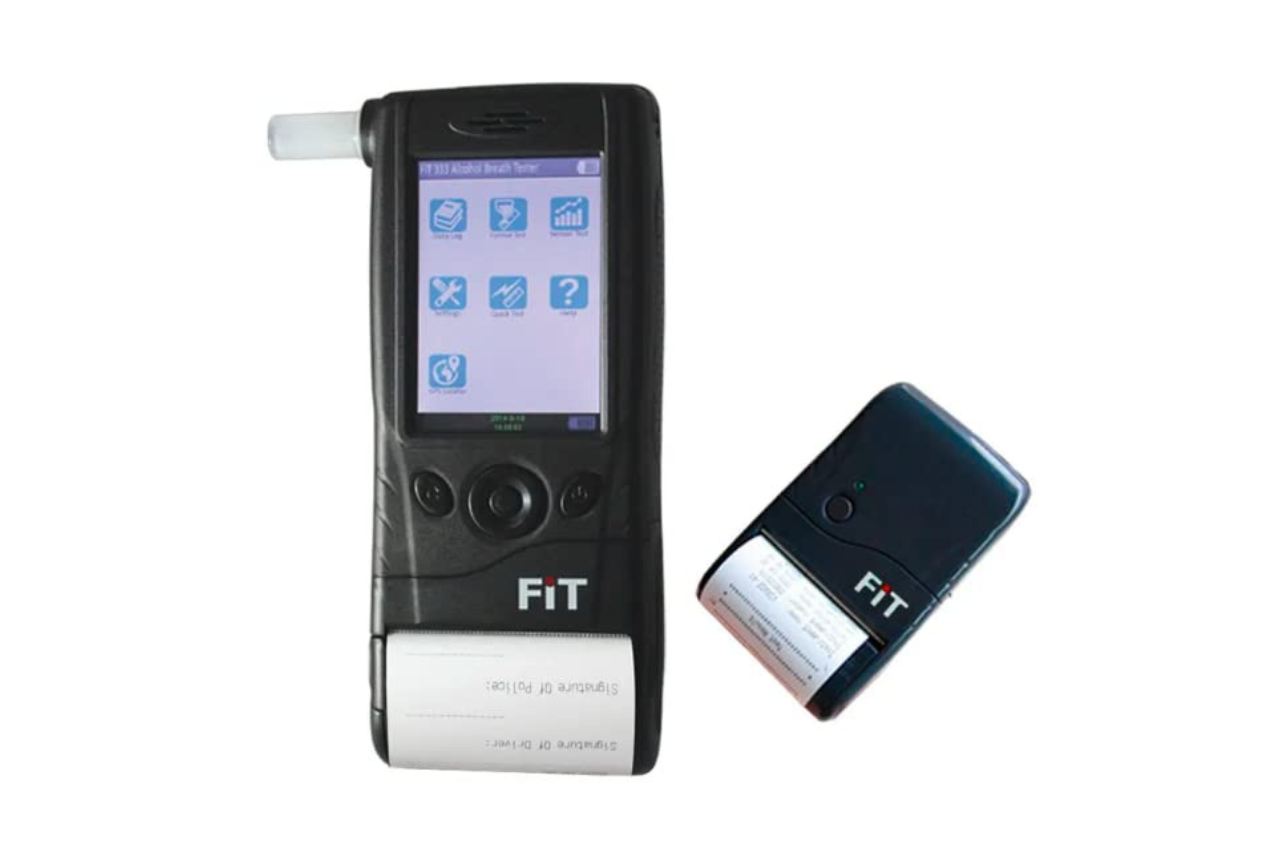

Alcohol Breath Analyzer With Printer FIT333
ALCOHOL TESTER Professional fuel cell sensor breath alcohol tester with printer and touch screen. The fuel cell is a porous disk with a thin layer of platinum black on both faces and any alcohol that comes in contact with the cell’s surface is broken down chemically. For each molecule of alcohol that is broken down a given number of electrons are freed during the process. The numbers of electrons generated are in proportion to the amount of alcohol.
Technical Specifications of Alcohol Breath Analyzer With Printer FIT333
- Display: Colour 3.2 TFT LCD with touch screen and grafic waveform• Keyboard: 5 keys operation: “Up”, “Down”, “Left”, “Right”, “OK”
• Power Supply: Rechargeable AA battery (about 2500 mAh)
• Heat warm up: Chamber & Sensor warm up automatically
• Auto flow monitoring: Flow detect automatically
• Storage environment: -40 Degree C to +85 Degree C
• Operating environment: -20° to +70°. (optimal -20° to +40°)
• Record PC download: PC Download through USB cable (CSV file)
• Compatibility: Windows XP, 7
• Memories: 10,000-18,000 memories for approx 3,000 full tests: drive name, vehicle number, inspector name, test result with stamp data and time, location, calibration data, …
• Measurement precision: Standard deviation ±0,025 mg/L or ±5% of the measurement
• Drift: typically <0,8% of the measurement value/month
• Size: 188x78x33 mm
• Weight: 300 g
