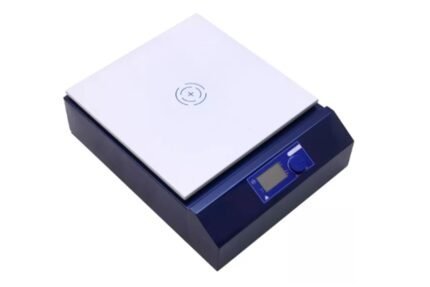

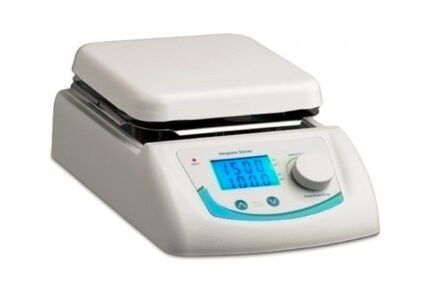

DIGITAL MAGNETIC STIRRERWITH HOTLATEKHMS-3706, 20 LITRE
DESCRIPTION OF DIGITAL MAGNETIC STIRRERWITH HOTLATEKHMS-3706, 20 LITRE
The Hotplate magnetic stirrer with heating function is ideal for applications up to 20 liters and can gently stir your solution in a speed range of 200 – 1,500 rpm. In addition, the rotation speed ramps up slowly until it has reached the desired value. This prevents splashes, uneven starts, or jumps of the stirring rod. The patented Hotplate made of aluminum with a ceramic coating is chemical-resistant, scratch-resistant and has large square platform of 180mm. Based on our proven magnetic stirrer series with heating function, the magnetic stirrer was specially developed for applications with heating & stirring together. The Hotplate magnetic stirrer with heating function is ideal for applications up to 20 liters and can gently stir your solution in a speed range of 200 – 1,500 rpm. In addition, the rotation speed ramps up slowly until it has reached the desired value. This prevents splashes, uneven starts, or jumps of the stirring rod. The patented Hotplate made of aluminum with a ceramic coating is chemical-resistant, scratch-resistant and has large square platform of 180mm. This unique size makes it suitable for use with many accessories and samples on a small footprint.
FEATURES OF DIGITAL MAGNETIC STIRRERWITH HOTLATEKHMS-3706, 20 LITRE
- Magnetic stirrer suitable for unsupervised operation, with new stir technology
- Automatic judgment stirring bar displacement and capture
- Hotplate with stainless steel surface or porcelain enamel surface with excellent chemical resistance
- Easy-to-read backlit LCD display
- Fuzzy logic control microprocessor technology guarantee maximum control accuracy
- Multiple modes ensure the stirring function not change due to external factors With the control of safe temperature suitable for unsupervised operation 2 adjustable safety circuits ,separateness temperature sensor, protection temperature can be set
- Temperature sensor for heat transfer fluid and medium available (PT1000)
- Warning display indicating presence of any residual heat when the unit is switched off
- PC control via RS232 interface
- Extra Large platform 180x180mm
| TECHNICAL SPECIFICATION |
| Dimension [mm] |
390*300*230 |
| Voltage [VAC] |
110/220 |
| Stirring point position quantity |
1 |
| Max. stirring quantity（H2O）[L] |
20 Litre |
| Stirring point position quantity [mm] |
80 |
| Motor type brushless motor |
Yes |
| Motor rating input [W] |
18 Motor rating output [W: 10] |
| Speed range [rpm] |
200-1500 |
| Speed display |
LCD |
| Speed display accuracy [rpm] |
1 |
| Material |
Ceramic |
| Dimension of Platform [mm] |
180*180 |
| Heating power [W] |
500 |
| Heat rate |
1L (water）[K/min] |
| Heating Temperature Range [℃] |
RT-500 |
| Temperature display |
LCD |
| Temperature display accuracy [℃] |
0.1 |
| Control accuracy of heating temperature [℃] |
1 |
| Temperature sensor of extra position PT100 |
Optional |
| Control accuracy of heating temperature with temperature sensor [℃] |
0.2 |
| Permissible ambient temperature [℃] |
5-40 |
| Permissible ambient humidity |
80% Protection class acc. to DIN EN60529 IP42 |
| RS232 interface |
Yes |
