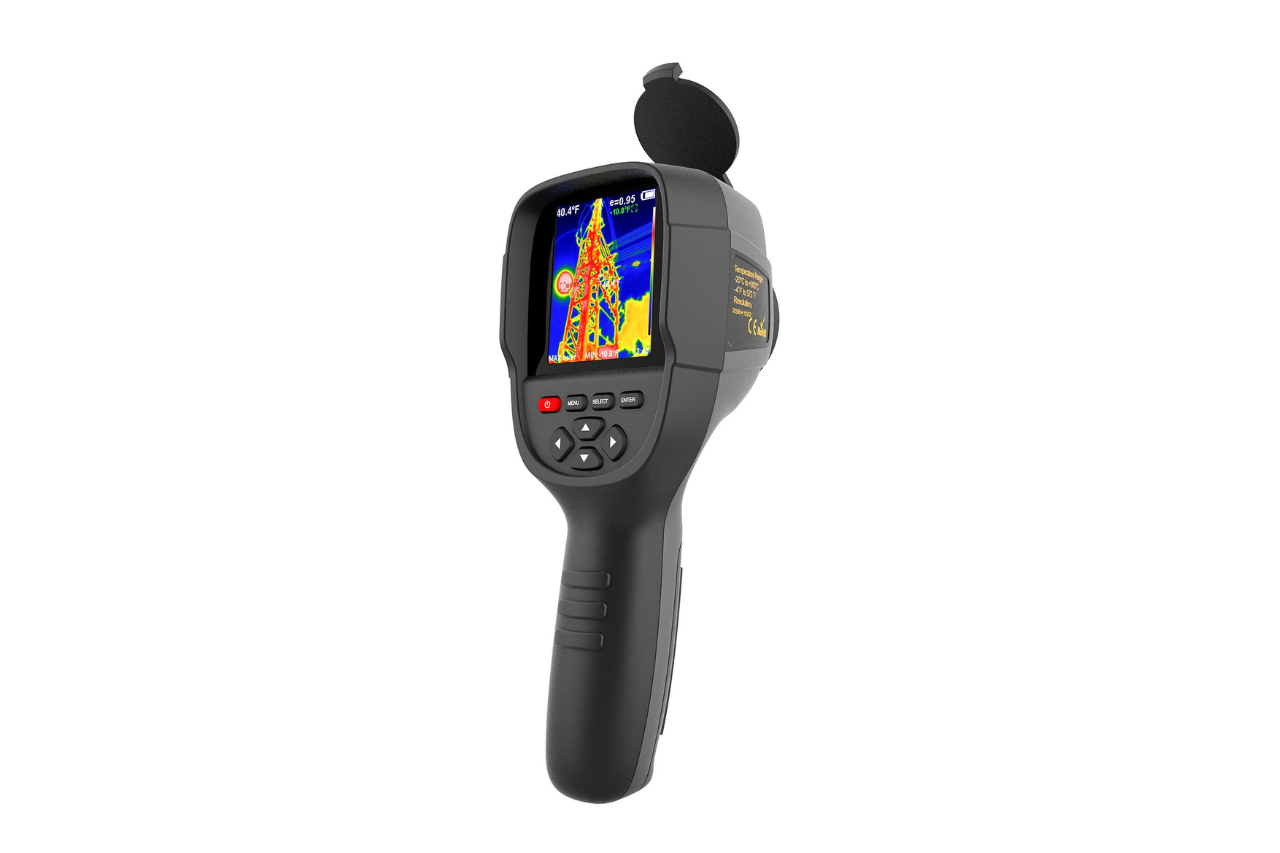

HT-18+ Thermal imager

HT-18+ thermal imager

Description 0f HT-18+ Thermal Imager

EASIER TO READ greater detail and accuracy with improved 256 x 192 resolution. This is the professional quality IR Infrared Thermal Imager used for home inspections, fire fighting, farming, electronics manufacturing, studying traffic, archaeology and any other business, hobby, or science where accurate to 2.5°F temperature readings are required.

5 COLOR SCALE PALETTES make readings more useful and easier to visualize. Choose from Rainbow, Iron Red, Cold Color, Black and White, or White and Black. 3.2″ Color Display Screen makes work faster and more accurate. Excellent integration of surface temperature and real time thermal imaging

BONUS 3 GB BUILT-IN MEMORY CARD included for convenient storage. Uses micro USB connection to display on laptop, TV, or other device. Easy to use with no learning curve. Simple push button operation lets you start using immediately to get better measurements and more accurate information and visualization.

LIGHTWEIGHT WITH RECHARGEABLE BATTERY for 2 to 3 hours of continuous working time on a single charge. You can buy batteries to replace them. Open the battery cover to replace the battery.This is easy to hold thanks to the sure grip ergonomic handle and light 389 gram weight – less than one pound!

Specification of HT-18 thermal imaging camera

1. Infrared image resolution：256×192

2. Infrared response band: 8 to14μm

3.Infrared detector type: Vanadium Oxide Uncooled Infrared Focal Plane

4. Field angle：56°×42°

5. Display size：3.2-inch(240×320)

6. visible light resolution：640×480

7. Thermal imaging frame rate：≤25Hz

8. Temperature measurement range：-20℃ to +550℃(-4℉ to 1022℉)

9. Measurement accuracy：15℃ to 550℃ ±2℃or ±2% ; -20℃ to -15℃ ±4℃
